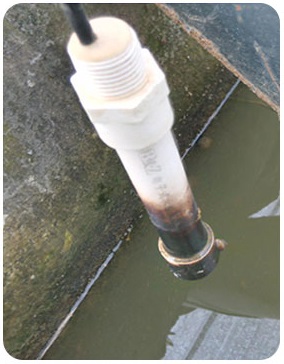

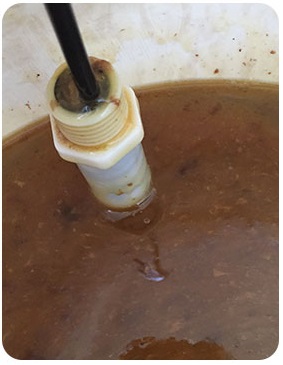

Liquid Level Siwtch gives output when contact with the liquid. Capacitive liquid level switches can operates the relay close or open on fall of liquid level.
| BUS BAR MONITOR & CONTROLLER | |
|---|---|
| Model | : AMP2401 |
| Operating Voltage | : DC 12-24v |
| Operating Current | : 10mA |
| Maximum Dc Output Current | : 100mA |
| Shell Material | : Edible Grade PP |
| Life | :More than 1 million |
| Operating Temperature | : -10 – 60 degreeC |
| Output PNP | : Output high level when water is available |
| Applicable Liquid | : Tap – Water, Pure – Water, Sewage Water |
| Connection | : Three – wire |
| Crew outside Diameter | : DN20 |
| Line Length (Can Order) | : 2.5meter |
| Filling Material | : Epoxy Resin |
| Humidity | : No effect |
| BUS BAR SENSORS | |
|---|---|
| Model | : AMP2402 |
| Operating Voltage | : DC 12-24v |
| Operating Current | : 10mA |
| Maximum Dc Output Current | : 100mA |
| Shell Material | : Edible Grade PP |
| Life | :More than 1 million |
| Operating Temperature | : -10 – 60 degreeC |
| Output PNP | : Output high level when water is available |
| Applicable Liquid | : Tap – Water, Pure – Water, Sewage Water |
| Connection | : Four – wire |
| Crew outside Diameter | : DN20 |
| Line Length (Can Order) | : 2.5meter |
| Filling Material | : Epoxy Resin |
| Humidity | : No effect |
