Wireless Busbar Temperature Monitoring System

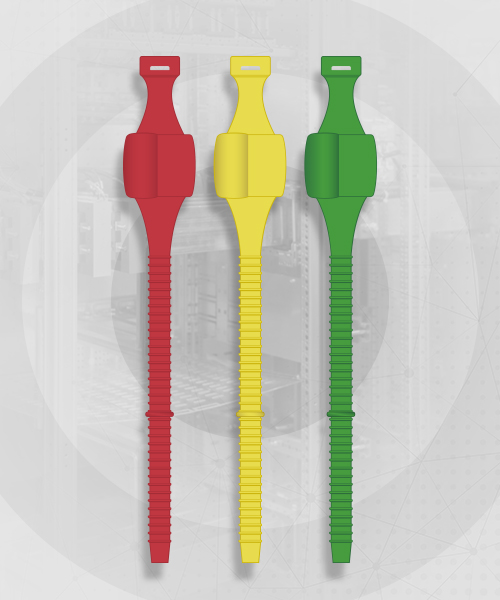

The BBS350BT wireless temperature sensor is a state-of-the-art device designed to monitor critical temperature points on both metal and insulating surfaces.

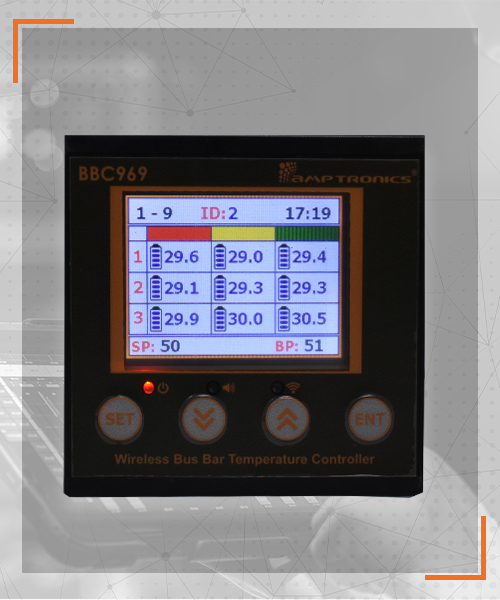

The BBC969-27C receiver captures RF signals from a range of sensors, including busbar sensors, humidity sensors and bus duct temperature sensors. It is the heart of our flagship wireless busbar temperature monitoring system, which watches every busbar joint in your switchgear around the clock.

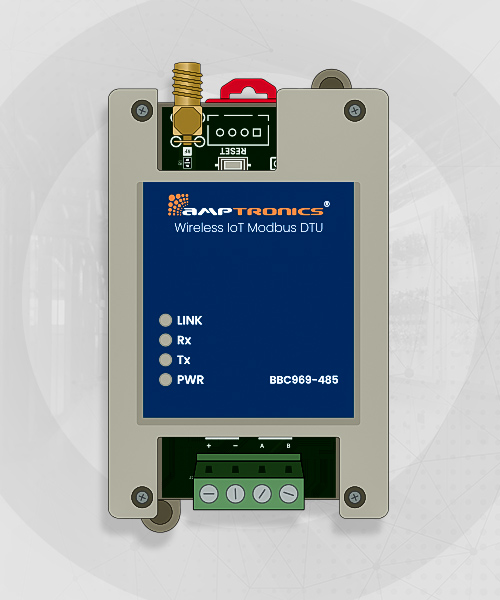

The BBC969-485RC is a cost-effective, display-less temperature controller that offers the same robust features as its display-equipped counterpart, the BBC969-27C.
Wireless Busbar Temperature Monitoring for Switchgear and Bus Ducts
Wireless busbar temperature monitoring puts a small wireless sensor on each critical busbar joint, so a hot connection raises an alarm long before it can cause an outage or fire. Amptronics Systems Pvt. Ltd. designs and manufactures these sensors, along with controllers and gateways, in Hyderabad, India, with a US office in Pennsylvania.
Our wireless busbar temperature monitoring system (WBTMS) is rated from 0.4 kV to 66 kV and watches every joint in LV, MV and HV switchgear and bus ducts around the clock. We also build industrial IoT systems for HVAC and ambient, industrial motor, water and steam trap monitoring, and offer embedded product design services.

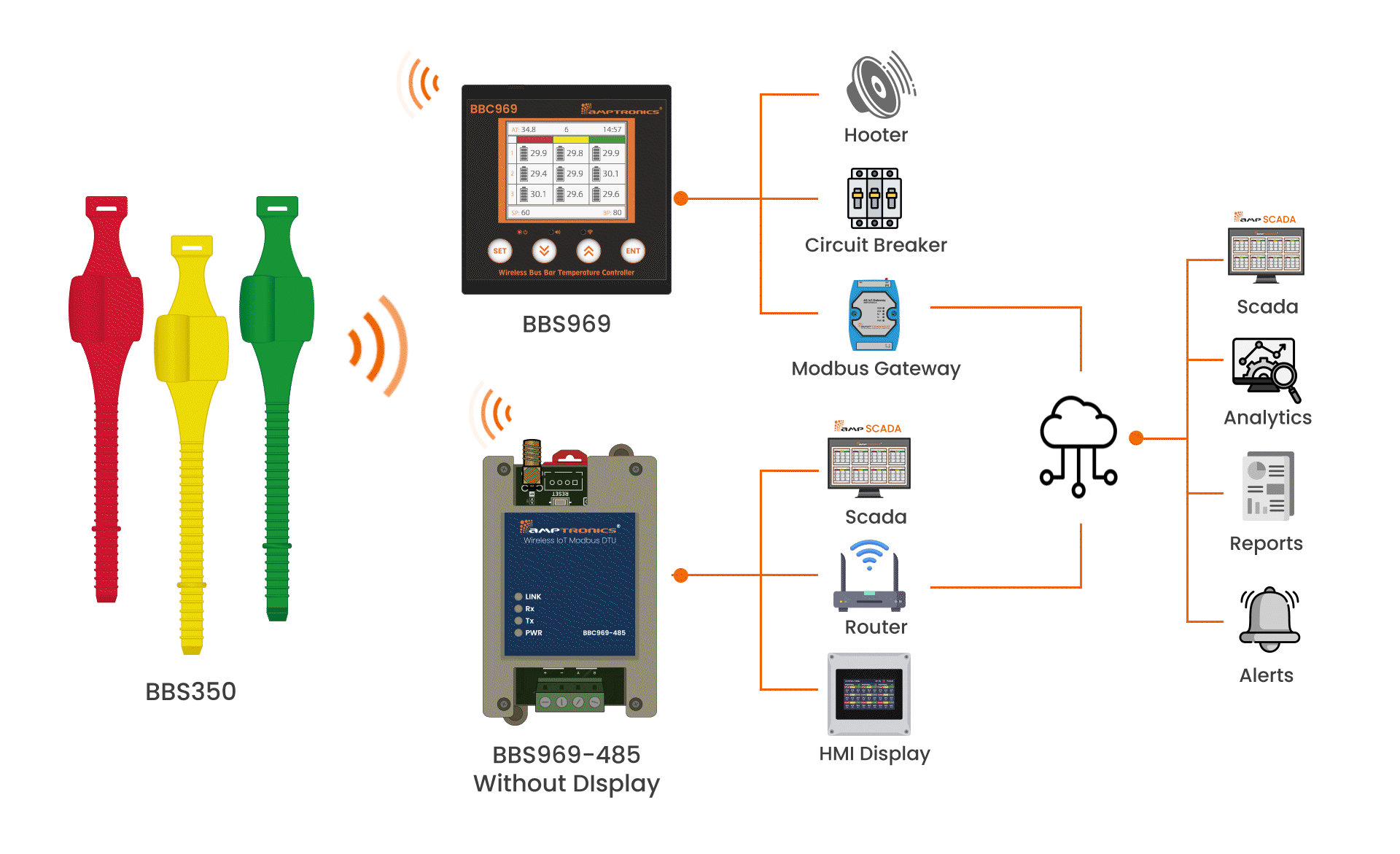

View all products Book a demoHow Wireless Busbar Temperature Monitoring Works
Sensors on the joints

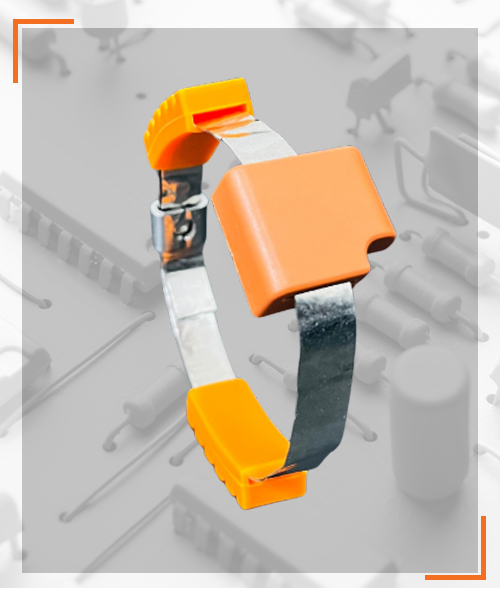

Strap-on battery or CT-powered sensors measure the temperature of each busbar joint.
Encrypted wireless link
Readings travel by AES-128 encrypted radio, so no signal wiring runs near live parts.
Controller and alarms
A panel controller or DIN-rail receiver collects up to 60 sensors and switches alarm relays.
Why busbar joints overheat
Every bolted joint has some contact resistance. Loose bolts, oxidation, overloading and unbalanced phases raise it, so the joint runs hotter, and that heat damages the joint further. Left alone, the cycle can end in melted insulation, an arc flash or a fire. Our guide covers the 5 hotspots to check.
Wireless monitoring vs thermography
Thermography surveys usually happen once or twice a year and often mean opening panels, so a joint can start overheating the day after a survey. Wireless monitoring reads every joint around the clock. Learn more in what is busbar temperature monitoring?
Our Products
Integrated Solutions
Wireless Busbar Temperature Monitoring
Wireless sensors on every busbar joint report temperature 24/7, catching hot connections long before they cause an outage or fire.
Explore busbar monitoring
HVAC & Ambient Condition Monitoring
Track temperature, humidity and air quality in panels, server rooms and buildings, and stop condensation and overheating early.
Explore HVAC monitoring
Steam Trap Monitoring
Find leaking, blocked and cold steam traps automatically, cut steam losses and get a prioritised repair list.
Explore steam trap monitoring
Busbar Monitoring Dashboard
Live heatmaps, phase comparison, trends, alarms and maintenance insights for every panel, all in one web dashboard.
Explore dashboard
Intelligent Water Monitoring
Monitor tank levels, flow and consumption in real time to detect leaks early and manage water use across your site.
Explore water monitoring
Industrial Motor Condition Monitoring
Track motor temperature and vibration to spot developing faults early and plan maintenance before a breakdown.
Explore motor monitoringTrusted by 150+the world's fastest growing companies
Latest insights
Guides and practical knowledge on busbar temperature monitoring, condition monitoring and industrial IoT.
-
Water monitoringOctober 2026 Water Level Monitoring System: How It Works, Sensor Types and How to ChooseEight sensor types compared, alarm setpoints, IoT connectivity, installation tips and a selection flowchart.
-
Maintenance strategyOctober 2026 Predictive vs. Preventive Maintenance for Electrical AssetsKey differences, pros and cons, examples, the P-F curve, costs and how to choose for each asset.
-
GuideOctober 2026 What Is Busbar Temperature Monitoring? Complete GuideHow it works, why busbars overheat, safe temperature limits, sensor technologies and how to choose a system.
-
FAQOctober 2026 Wireless Busbar Temperature Sensor FAQ: 15 Questions AnsweredBattery life, accuracy, range, installation, alarm thresholds and SCADA integration.
Frequently Asked Questions
It is the continuous measurement of busbar joint temperature in switchgear and bus ducts using small wireless sensors. The sensors report to a controller around the clock, and the system raises an alarm when a joint starts to overheat, so it can be repaired before it fails. Read more about the Amptronics wireless busbar temperature monitoring system.
The BBS350BT and BBS350CT sensors measure from -40°C to 150°C, with ±0.5°C accuracy from 0 to 85°C and ±0.75°C above 85°C.
Yes. The busbar sensors strap on with no drilling or changes to the busbars, so they suit both new panels and retrofits.
The BBC969 controllers provide Modbus RTU over RS485 for connection to SCADA, PLC or BMS. The AMP-IoTG 4G gateway sends data to a cloud dashboard with live temperatures, alarms, trends and reports.
Besides wireless busbar temperature monitoring, Amptronics makes industrial IoT sensors, controllers and gateways for HVAC and ambient, motor, water and steam trap monitoring. See all products.
Power and utilities, data centers, renewable energy, oil and gas, iron and steel, cement, chemical, pharma, textile, and water and wastewater.
Amptronics Systems Pvt. Ltd. was founded in 2012 and is based in Hyderabad, India. Its US office, Amptronics LLC, is in Breinigsville, Pennsylvania. You can contact the team or book a demo.
