Industrial Process Control Displays

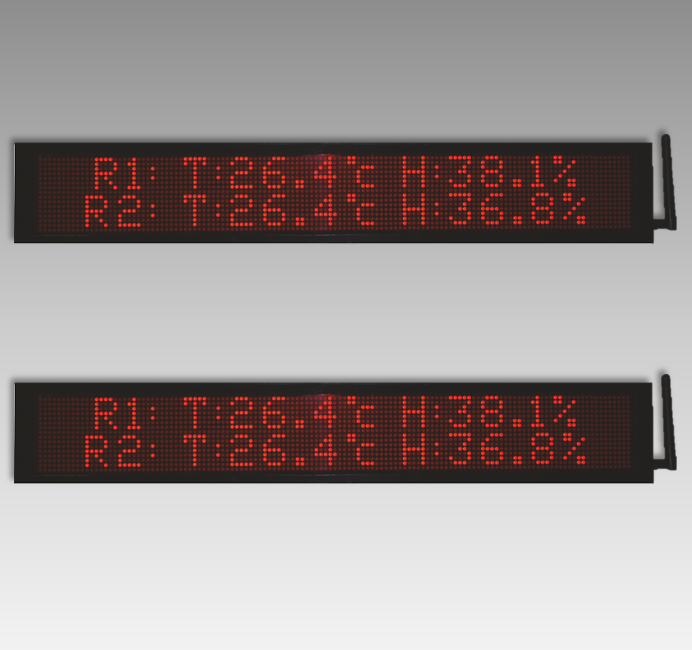

WIRELESS Process Control Dislay -W28DM

W28DM-SD is Universal wireless Led Matrix display use for monitoring parameters like Temperature, Humidity, Pressure, Flow monitor, and Level monitor as per user requirement. W28DM-SD receives the data from remote transmitter supplied by Amptronics and which display the data as per user requirement, and same data is log on USB pen drive with day wise report in CSV or TXT format. The device is inbuilt with GSM, for receiving SMS by user in remote by just giving miss call.

Operating mode, Configuration, SMS service, off set values and other network parameters, can be configure just with one TXT file.

Specifications

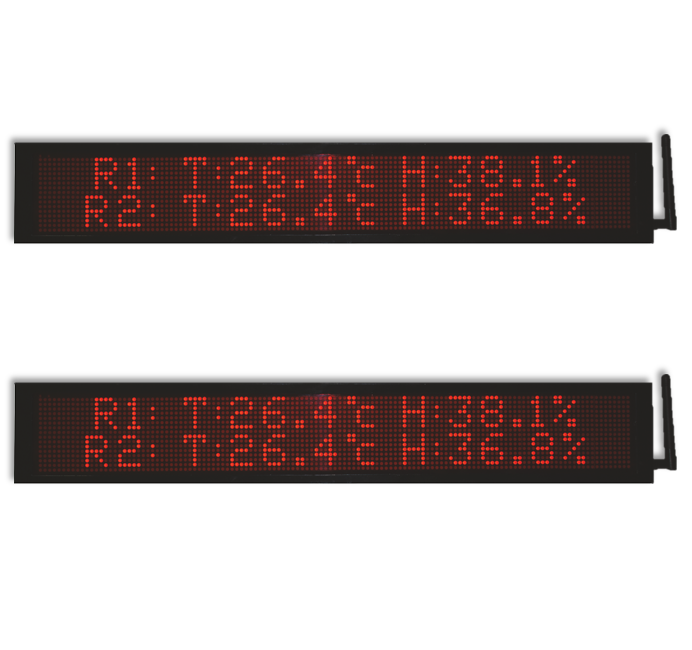

4 inch Industrial Matrix LED displays
WIRELESS TEMPERATURE & HUMIDITY (RHT) - AMP-WRHT
Display Type : 4 Inch, 8*8, 8-digit Bright LED dot matrix display
Data Storage : USB Pen Drive up to 32 GB
Data Format : TXT, CSV for excel format
GSM Service : SMS messaging, * optional for GPRS remote data transfer to server
Connection : Max 3 remote wireless data can be display on one W28DM-SD with periodical time
Clock : 300bps -High precise RTC clock inbuilt
Communication type : Wireless Point to Point, Point to Multi Point
Operating Frequency : 433 MHz, 868MHz, 2.4GHz
RF Channels : 32
Range : Up to 4km line-of-sight range depending on operating frequency
Baud Rate : 300bps - 19200bps
Transmitting power : 0dBi to 20dBi configurable
Packet Size : 256 bytes with CRC
Power supply range : AC 90-240V, 3Watt
Operating temperature/td> : -40 ~ 85 industrial grade
Mechanical size : 450 * 100 * 60 mm (L * W * H)
