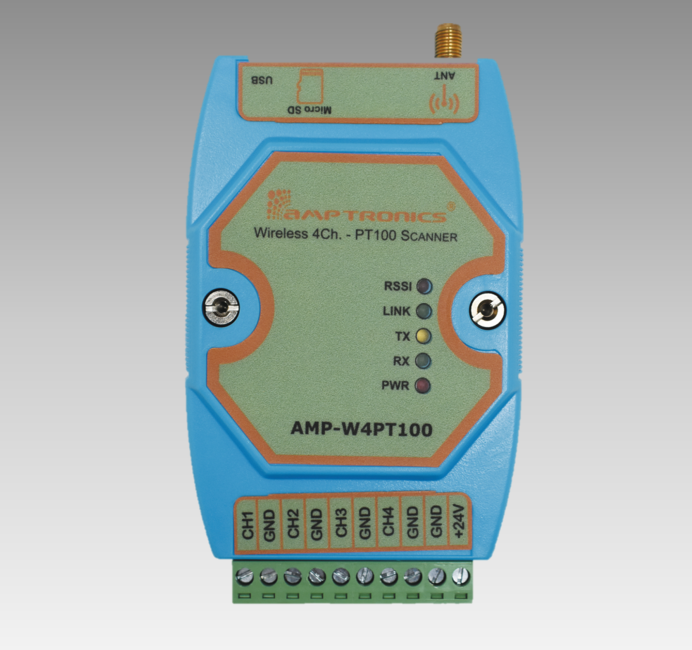

4 channel PT 100 RTD, Data Logger, Transmitter

Industrial Wireless 4 Channel PT100/RTD Scanner/Data logger/Transmitter - AMP-W4PT100

AMP- W4PT100 is a 4-channel wireless platinum resistance high-precision acquisition data logger, The acquisition accuracy and high speed analogue signal data are stored in micro sd for data logging with predefined timing interval and be transmitted wireless using Modbus-RTU communication, can be adapted to PLC, DCS and a variety of configuration software.

Specifications

Wireless-PT100-RTD
Industrial Wireless 4 Channel PT100/RTD Scanner/Data logger/Transmitter - AMP-W4PT100
Input channel : 4-channel isolated analogue acquisition
Input signal type : Platinum resistance (PT100 / PT1000)
Accuracy : 0.1 ° C or 0.05% of temperature range
Sampling rate : 200ms
Resolution : 24 bit acquisition
Data Storage : Micro SD up to 32 GB
RTC : inbuilt high precise RTC clock
Communication output
Communication protocol : Wireless Point to Point, Point to Multi Point, MODBUS-RTU
Operating Frequency : 433Mhz, 868MHz, 2.4GHz
RF Channels : 32
Range : Up to 4km line-of-sight range depending on operating frequency
Baud Rate : 1200bps -115200bps
Transmitting power : 0dBi to 20dBi configurable
Packet Size : 256 bytes with CRC
Power supply range : DC 8-28V, 100mA
Operating temperature : -40℃ ~ 85 ℃ industrial grade
Mechanical size : 120mm * 72mm * 26mm (L * W * H)
