Industrial Isolated Usb to rs485 convertor

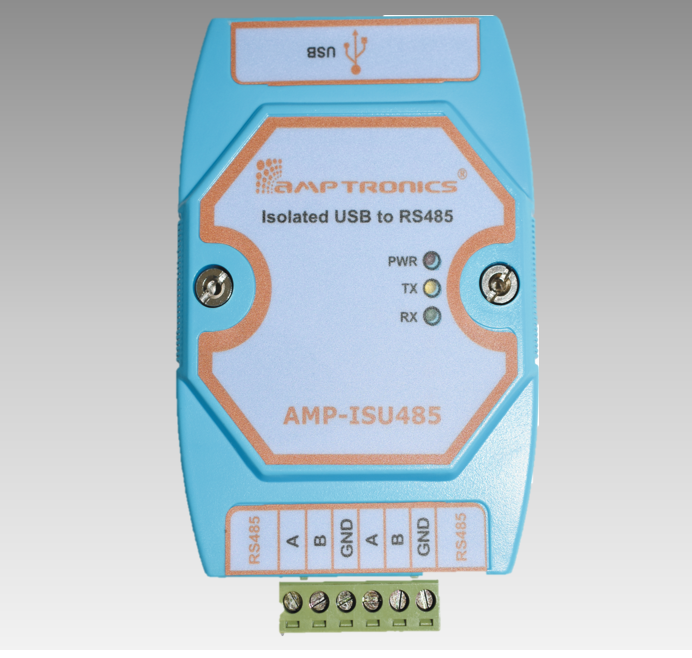

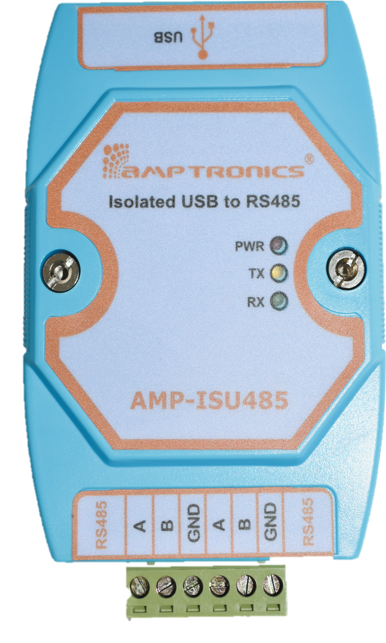

Industrial Isolated USB to RS485 Converter (AMP-ISU485)

AMP-ISU485 is a rugged industrial-grade, isolated half- duplex USB to RS485 used to convert any standard USB port into a two-wire RS-485 Port and vice versa. The device powers from the USB port and has a data format for automatic detection and self-tuning; therefore, no dipswitches or jumper settings are required, the product can be mount directly on a wall, panel or DIN rail.

Specifications

Usb to RS485 Convertor
Industrial isolated RS485 to Ethernet converter - AMP-M9245
Baud rate : 300 bps ~ 921600bps, auto detection and self-adjustment data format, Data direction automatic switching
Isolation : high-performance magnetic isolation with 2500Vrms AC, for 1 minute
Interface : USB –RS485
Load performance : 1/8 Unit Load – Up to 256 Nodes on a Bus with built-in 120Ω tail line termination
Output protection : TVS protection, ESD Protection, Filter network, Thermal Shutdown. Built-in 600W surge protection, 15kV electrostatic protection
Power supply range : 4.75 ~ 5.25V, use USB interface power supply about 100mA
Operating system : Virtual serial port
Isolation : Windows 10/8/7 / VISTA / XP / Server2003 / 2000 (32-bit), and Linux
Operating temperature : -40℃ ~ 85 ℃ industrial grade
Mechanical size : 112.5 * 72 * 25.5mm (L * W * H)
Power supply range : DC 8-28V, 200mA
