RS485 to Ethernet Convertor

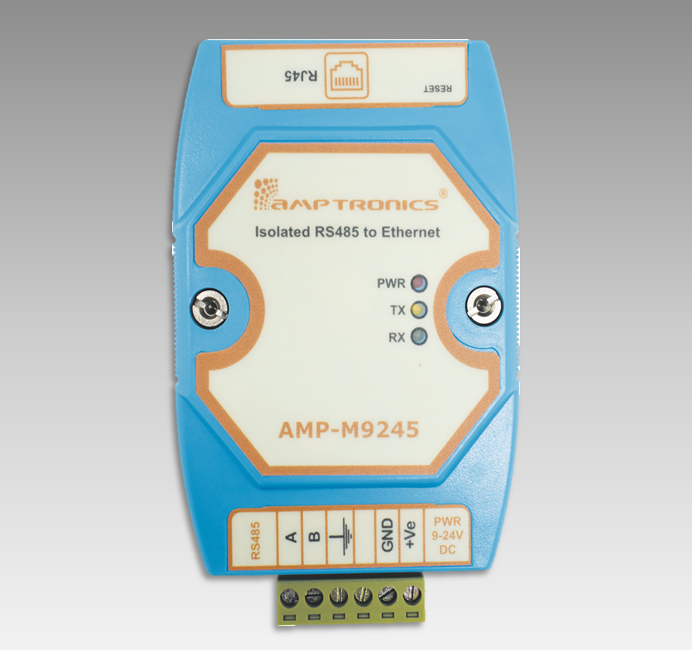

Industrial isolated RS485 to Ethernet converter - AMP-M9245

AMP-M9245 is a RS485 to the TCP / IP intelligent communication converter, it offers RS485 to TCP / IP network as well as TCP / IP network to the RS485 transparent data transmission. The product can be mount directly on a wall, panel or DIN rail.

Specifications

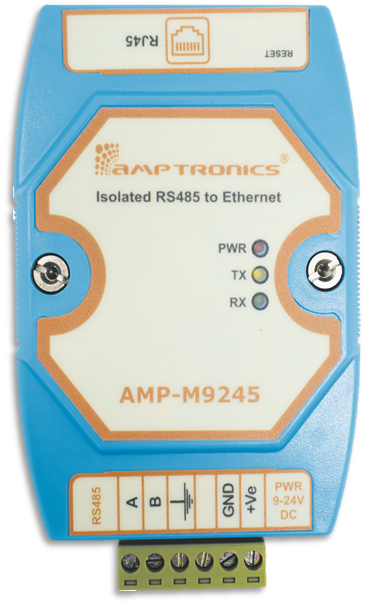

Industrial RS485 to Ethernet Convertor
Industrial isolated RS485 to Ethernet converter - AMP-M9245
Baud rate : 300 bps ~ 921600bps, auto detection and self-adjustment data format, Data direction automatic switching
Operating mode : TCP CLIENT, TCP SERVER, and UDP modes
Supporting mode 10 / 100M, full duplex / half-duplex adaptive Ethernet interface, compatible with IEEE 802.3 protocol
MDI / MDIX line automatic conversion
Own internal Ethernet media transport layer (MAC) and Physical Layer (a PHY)
Two-way transparent transmission of serial data and network data
Virtual serial port
Isolation : high-performance magnetic isolation with 2500Vrms AC, for 1 minute
Interface : RS485 – Ethernet TCP/IP, UDP. Can configure as Server / Client
Output protection : TVS protection, ESD Protection, Filter network, Thermal Shutdown. Built-in 600W surge protection, 15kV electrostatic protection
Power supply range : DC 8-28V, 200mA
. Operating system : Windows 10/8/7 / VISTA / XP / Server2003 / 2000 (32-bit), and Linux
Operating temperature : -40℃ ~ 85 ℃ industrial grade
Mechanical size : 112.5 * 72 * 25.5mm (L * W * H).
