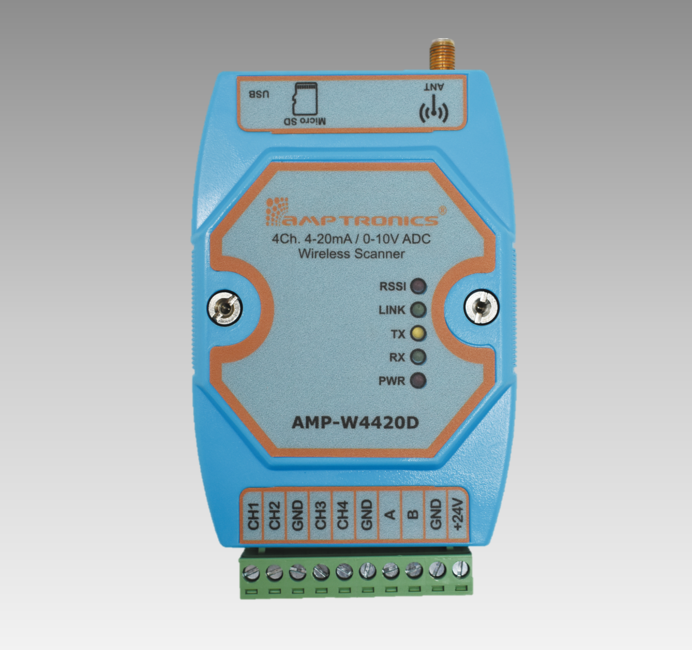

Wireless 4-20mA-ADC-Converter

Industrial Wireless 4 Channel 4-20mA/ 0-5V/ 0-10V ADC Scanner/Data logger/Transmitter - AMP-W4220D

AMP- W4220D is a 4-channel analogue signal (voltage/current) high-precision acquisition data logger. The acquisition accuracy and high speed analogue signal data are stored in micro SD for data logging with predefined timing interval and communicate with wireless or wired using Modbus-RTU communication, can be adapted to PLC, HMI, DCS and a variety of configuration software.

Specifications

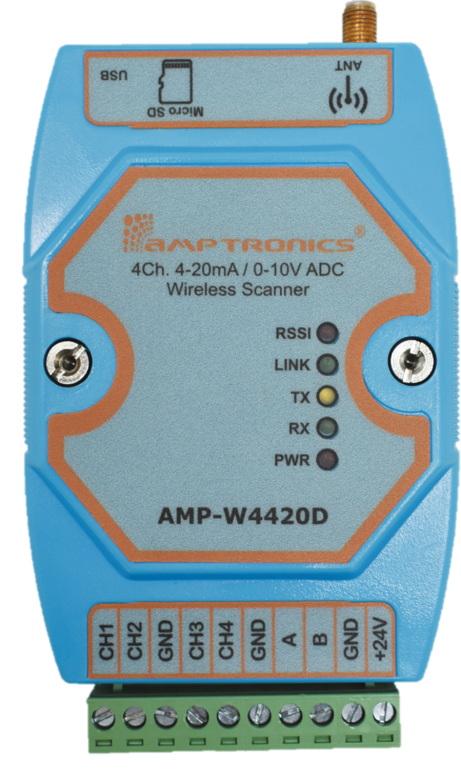

Wireless-4-20mA-ADC-Converter
Industrial Wireless 4 Channel 4-20mA/ 0-5V/ 0-10V ADC Scanner/Data logger/Transmitter - AMP-W4220D
Input channel : 4-channel isolated analogue acquisition
Input signal type : 4-20mA, 0-5V, 0-10V
Accuracy : Voltage input 0.2% current input 0.3%
Sampling rate : 200ms
Resolution : 16 bit acquisition
Data Storage : Micro SD up to 32 GB
RTC : inbuilt high precise RTC clock
Communication output
Communication protocol : Wireless Point to Point, Point to Multi Point, MODBUS-RTU with RS485 Modbus
Operating Frequency : 433Mhz, 868MHz, 2.4GHz
RF Channels : 32
Range : Up to 4km line-of-sight range depending on operating frequency
Baud Rate : 1200bps -115200bps
ransmitting power : 0dBi to 20dBi configurable
Packet Size : 256 bytes with CRC
Power supply range : DC 8-28V, 100mA
Operating temperature : -40℃ ~ 85 ℃ industrial grade
Mechanical size : 120mm * 72mm * 26mm (L * W * H)
